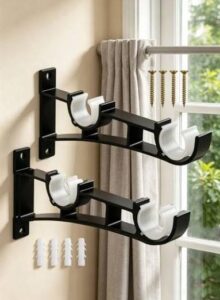

What are curtain rail brackets?

Curtain rail brackets are the supports used to secure a curtain rail or track to a wall or ceiling. They keep the rail firmly in position while allowing the curtain runners or carriers to move along the track.

The correct brackets are important because a curtain rail must support both its own weight and the weight of the curtains.

A rail with inadequate support can bend, loosen or pull away from the wall over time.

https://jobelservices.co.ke/product/jua-kali-curtain-rods/

How many brackets does a curtain rail need?

The number of brackets depends mainly on the rail length, curtain weight and rail design.

As a practical guide:

Curtain rail length	Typical support
Up to 1.5 m	2 brackets
1.5 to 2.5 m	2 to 3 brackets
2.5 to 3.5 m	3 to 4 brackets
3.5 to 5 m	4 or more brackets
Very long or heavy installation	Additional support may be required

These are general guidelines. Always follow the manufacturer’s recommendations, especially when installing heavy curtains or motorised rails.

https://primepathsolutions.co.ke/

Where should curtain rail brackets be positioned?

Brackets should be distributed along the rail so that the weight is properly supported.

Place brackets near the ends of the rail while leaving enough clearance for the curtain runners and end stops. Longer rails normally need additional brackets between the ends.

Avoid placing a bracket directly where it interferes with the movement of curtain runners.

For heavy curtains, closer bracket spacing may provide better support.

What types of curtain rail brackets are available?

Curtain rail systems can use different types of mounting brackets depending on the rail and installation.

Wall-mounted brackets

These brackets attach the curtain rail to the wall above the window.

They are useful when there is enough wall space above the window and you want the curtains to sit in front of the window frame.

Ceiling-mounted supports

Ceiling mounting is useful when there is limited wall space or when you want the curtains to run closer to the ceiling.

This option is also useful for some full-height curtain installations.

Adjustable brackets

Adjustable brackets allow the position of the rail to be changed slightly from the mounting surface.

They can be useful when you need additional clearance between the curtain and the wall.

Heavy-duty brackets

Heavy-duty supports are designed for installations where the rail carries more weight.

They can be suitable for:

• Blackout curtains
• Thick lined curtains
• Large decorative curtains
• Wide windows
• Commercial installations

The rail itself must also be rated for the intended load. Strong brackets cannot compensate for an unsuitable rail.

Do curtain rails need more brackets for heavy curtains?

Yes. Heavy curtains can require additional support compared with lightweight curtains.

The weight of the fabric creates more load on the rail and its mounting points. If the rail is long and carries several heavy curtain panels, additional brackets may be necessary.

When planning a heavy-curtain installation, consider the complete system:

Rail + brackets + fixings + runners + curtain weight

All components need to work together.

What fixings should be used for curtain rail brackets?

The correct fixing depends on the surface where the brackets will be installed.

Different surfaces may require different anchors or screws, including:

• Concrete
• Brick
• Timber
• Plasterboard
• Masonry
• Suspended ceilings

Do not assume that the same screw or wall plug is suitable for every surface.

For heavy curtains, use fixings appropriate for the wall or ceiling material and the expected load.

If you are unsure about the wall structure, get professional assistance before drilling.

How far should curtain rails sit from the wall?

The required clearance depends on the curtain fabric, curtain heading and any obstacles around the window.

The rail should provide enough space for the curtain to hang without constantly rubbing against:

• Window handles
• Window frames
• Grilles
• Blinds
• Air conditioners
• Other fixtures

Adjustable brackets can be useful when additional clearance is required.

The goal is to allow the curtain to move freely while keeping the installation secure.

Are brackets different for single and double curtain rails?

Yes. Double curtain rail systems are designed to accommodate two curtain layers, so the support system must be compatible with the double-track configuration.

A common setup uses a sheer or voile curtain on one track and a heavier decorative curtain on the other.

Before purchasing brackets, confirm whether they are designed for:

• Single rails
• Double rails
• Specific rail profiles
• Wall mounting
• Ceiling mounting

Using incompatible brackets can make installation difficult and may compromise the stability of the system.

What should you check before buying curtain rail brackets?

Before buying brackets, check these five things:

1. Rail type

Make sure the brackets match the rail profile.

2. Mounting method

Decide whether you need wall-mounted or ceiling-mounted support.

3. Curtain weight

Heavy curtains require a stronger support system.

4. Rail length

Long rails usually need additional support.

5. Installation surface

Choose suitable fixings for the wall or ceiling material.

Taking these measurements and specifications into account helps prevent compatibility problems.

Can curtain rail brackets be used with motorised curtain rails?

Motorised curtain rails require a support system that is compatible with the motorised track.

The motor and rail also add installation considerations that do not apply to a basic manual curtain track.

For motorised systems, check:

• Rail profile
• Bracket compatibility
• Motor position
• Power cable routing
• Curtain weight
• Rail length
• Wall or ceiling structure

For larger motorised installations, professional installation is recommended.

Common curtain rail bracket mistakes

Several installation mistakes can reduce the stability of a curtain rail.

Using too few brackets

Long rails carrying heavy curtains need adequate support.

Choosing incompatible brackets

A bracket may look suitable but still fail to fit the rail profile correctly.

Using the wrong wall fixing

A screw suitable for timber may not provide adequate support in masonry or plasterboard.

Ignoring curtain weight

The weight of the rail alone does not determine the required support.

Installing brackets too close to the curtain path

Incorrect positioning can interfere with curtain movement.

Safety warning when installing curtain rail brackets

Before drilling, check for hidden electrical cables, plumbing pipes and other services inside the wall or ceiling.

Use appropriate personal protection when drilling, especially eye protection.

If the installation involves a heavy curtain system, high ceiling, difficult wall structure or motorised rail, consider using a qualified installer.

A secure installation is more important than saving a few minutes during fitting.

Buy Curtain Rails and Accessories from Jobel Services

Choosing the right curtain rail is only part of a successful installation. The brackets, runners, connectors and fixings also need to suit the rail and the curtain weight.

Jobel Services supplies curtain products and accessories for residential, office and commercial installations in Kenya.

Before ordering, provide the rail length, curtain type, window measurements and preferred mounting method. This makes it easier to select compatible supports and accessories.

Whether you need a standard curtain rail, double curtain rail or a more specialized curtain installation, Jobel Services can help you choose components that match your project.

Contact Jobel Services before buying your brackets so you can confirm compatibility, quantity and the correct installation method.

Frequently Asked Questions

What are curtain rail brackets used for?

Curtain rail brackets support the rail and secure it to the wall or ceiling while allowing the curtains to move along the track.

How many brackets do I need for a 3-metre curtain rail?

A 3-metre rail will commonly need around three or four support points, depending on the rail design and curtain weight. Always check the manufacturer’s recommendations.

Do heavy curtains need stronger brackets?

Yes. Heavy curtains place more load on the rail and mounting points, so the complete system should be selected for the expected weight.

Can I use any bracket with any curtain rail?

No. Brackets need to be compatible with the rail profile and mounting system. Check compatibility before purchasing.

Are ceiling-mounted curtain rails better than wall-mounted rails?

Neither is automatically better. The right option depends on the available space, window design, curtain type and desired appearance.

Do double curtain rails need special brackets?

Yes. Double-track systems need supports designed to accommodate the particular double-rail configuration.

Final takeaway

Curtain rail brackets may be small components, but they play an important role in the safety and performance of the entire curtain system.

Choose brackets based on the rail type, rail length, curtain weight, mounting position and wall or ceiling material.

For long rails, heavy curtains and commercial installations, adequate support is especially important.

Before purchasing, confirm the rail and bracket compatibility rather than choosing components based only on appearance or price.
